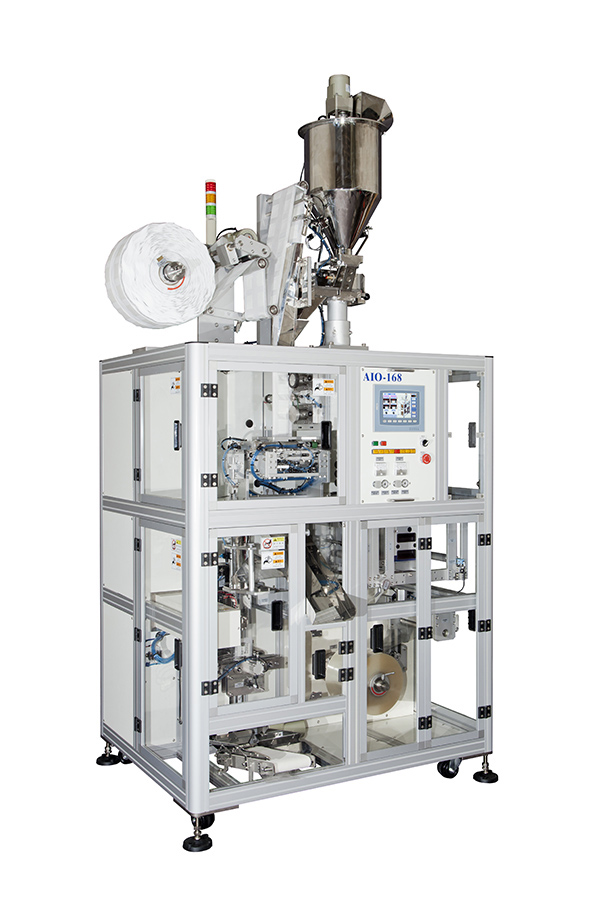

Drip Coffee Bag Packing machine(Single hopper)
Model number： AIO-168V
• Outer bag 3-side heat sealing• Inner bag 3-side ultrasonic bonding
• Touch screen panel
• All automatic – from forming bag, packaging, counting to ink manufacture date
• Most of the drip coffee bag packing machines are made of stainless steel (SUS)
• Our drip coffee packing machine is suitable for granule and powder materials such as coffee, tea, etc.
• Touch screen panel
• All automatic – from forming bag, packaging, counting to ink manufacture date
• Most of the drip coffee bag packing machines are made of stainless steel (SUS)
• Our drip coffee packing machine is suitable for granule and powder materials such as coffee, tea, etc.
Inquiry
Specifications
| Packing speed | Max 50pcs/min (depends on packaging material, size…etc) | |
| Packaging material | Inner bag：NWF, PET, Nylon, PLA…etc | |
| Outer bag：heat sealing material, for example PET + PE , PET + CPP…etc. | ||
| bag size | Inner ：W 70-75 mm, L 90 mm | |
| Outer：W 100 mm, L 120 mm | ||
| Power | AC220V, 50/60Hz/, 3P, 3KW(can be transformed to local voltage) | |
| Air pressure | 6kg/cm²(0.6 MPa) | |
| Machine Dimension | 1300mm(L)x1117mm(W)x2703mm(H) | |
| Machine Weight | 650 kg | |
| Weighing system | Volumetric | |

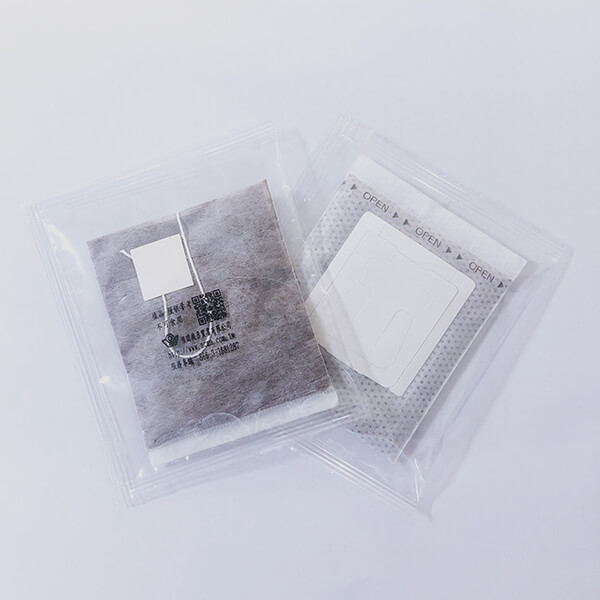

Package Types
Applicable packing ingredient

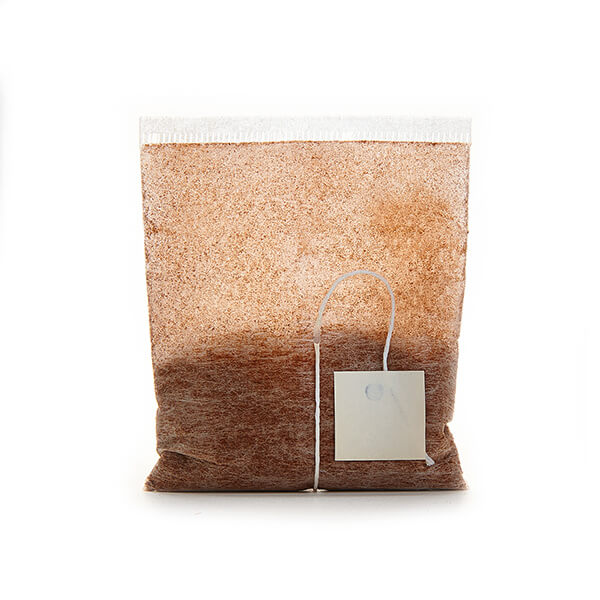

Dust tea
![Drip Coffee Bag Packing machine(Single hopper)]( "Drip Coffee Bag Packing machine(Single hopper)")
Coffee powder
Coffee powderVideo
Attachment
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
1 | AIO168+VSD50 Rectangular Inner and Outer Bag Packaging Machine | 2021-10-22 | AIO168+VSD50 Rectangular Inner and Outer Bag Packaging Machine |
