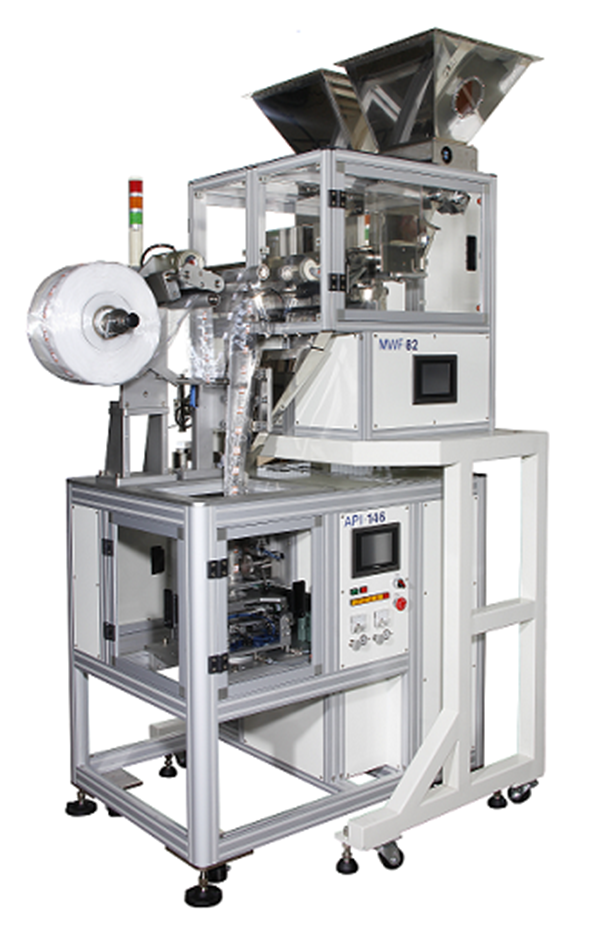

Model number: API146andMWF82

• Just one touch you can easily switch between tow kinds of packaging type.ngular with one click.
• Filling using the double hopper multi-head scale system .For different fillings can be set different parameter to get the best speed and accuracy of filling.
• Ultrasonic bonding and cutting system control by PLC, while both safe and, efficiency,save energy. The overload protection and alarm built-in.
• Touch panel HMI providing multifuntion setting for users providing users the most great operational elasticity.
• Applicable packing materials: Non-woven fabric, Nylon/PET mesh, Biodegradable material. (Optional ATL-146 auto tag and string bonding machine and PTB-180 triangle plane outer bag packing machine )
Inquiry
Quantity

Specifications

  • Packaging machine type : API 146
  • Scale Type : MWF 82
  • Capacity : Max. 80 bag/min (It depends on packing component.)
  • Packing Material : NWF , Nylon/PET mesh, Bio-degradable
  • Packing Method : Sticking and cutting by ultrasonic

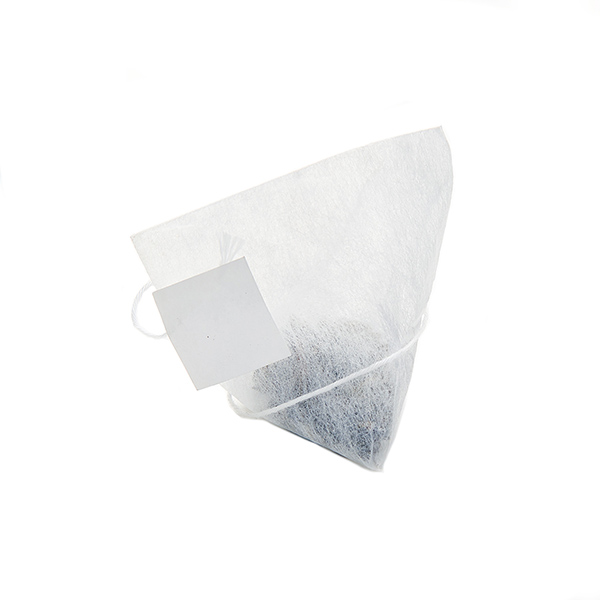

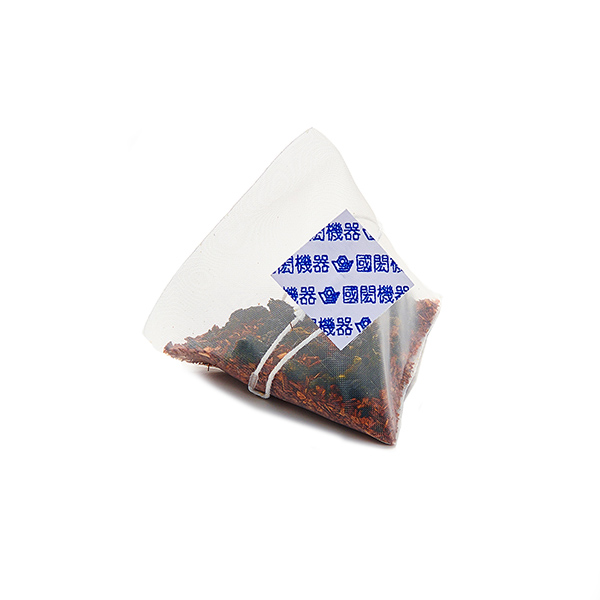

  • Bag Size Pyramid : 58~78mm

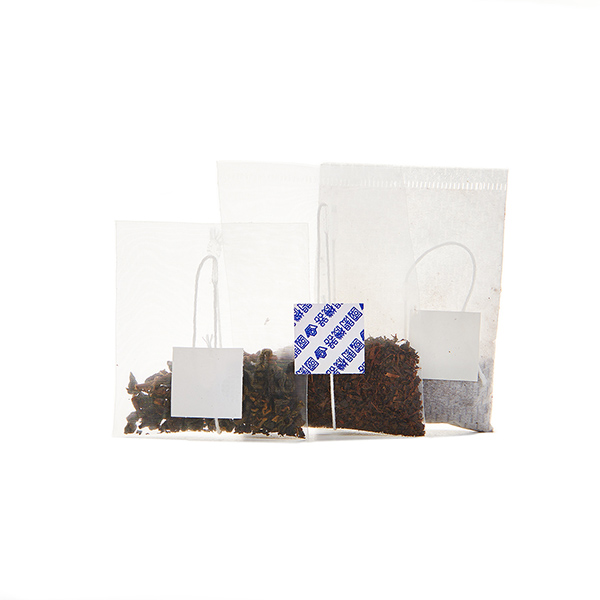

  • Bag Size Plane : 45~100mm, W58~78mm
  • Feeding System : Multi-head weigher (double trough)
  • Filling Range : 1~25g
  • Power Supply : AC220V, 50/60Hz/, 3P, 3KW(can be transformed to local voltage)
  • Pneumatic Pressure :6kg(0.6 MPa)
  • Dimension : 1170mm(L) x 1060mm(W) x 2350mm(H)
  • Weight : 450Kg
  • Standard Accessories : Touch panel HMI, Ionizing Generators, Tag detector, Ultrasonic overload protection, Liner & waste collection device, double hopper multi-head weigher (8 loadcell)
  • Option : Conveyer unit

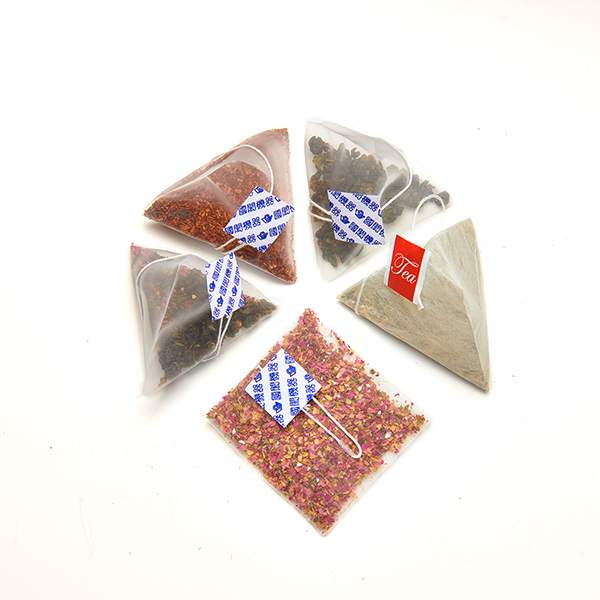

Applicable packing ingredient

API146+MWF82
Oolong tea
API146+MWF82
Dust tea
API146+MWF82
Scented tea
API146+MWF82
Chinese herbology
